ECU DIAGRAMS

The complete TSRM (Toyota Service Repair Manual) is available at cygnusx1.net with complete wiring schematics.

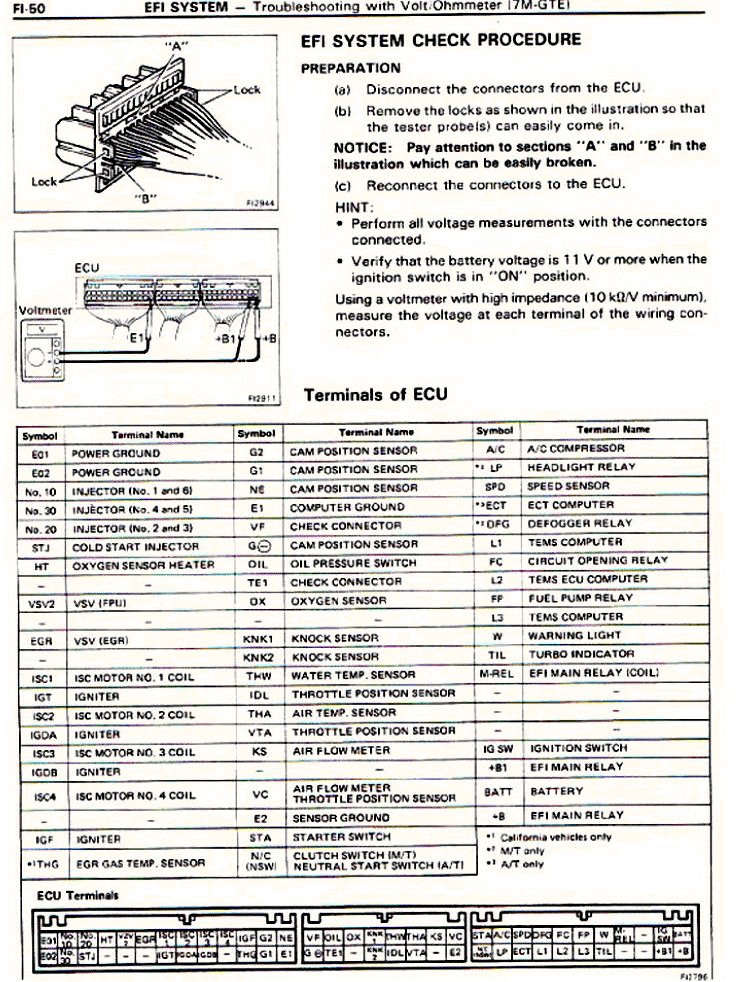

90 turbo ecu
1990 Turbo

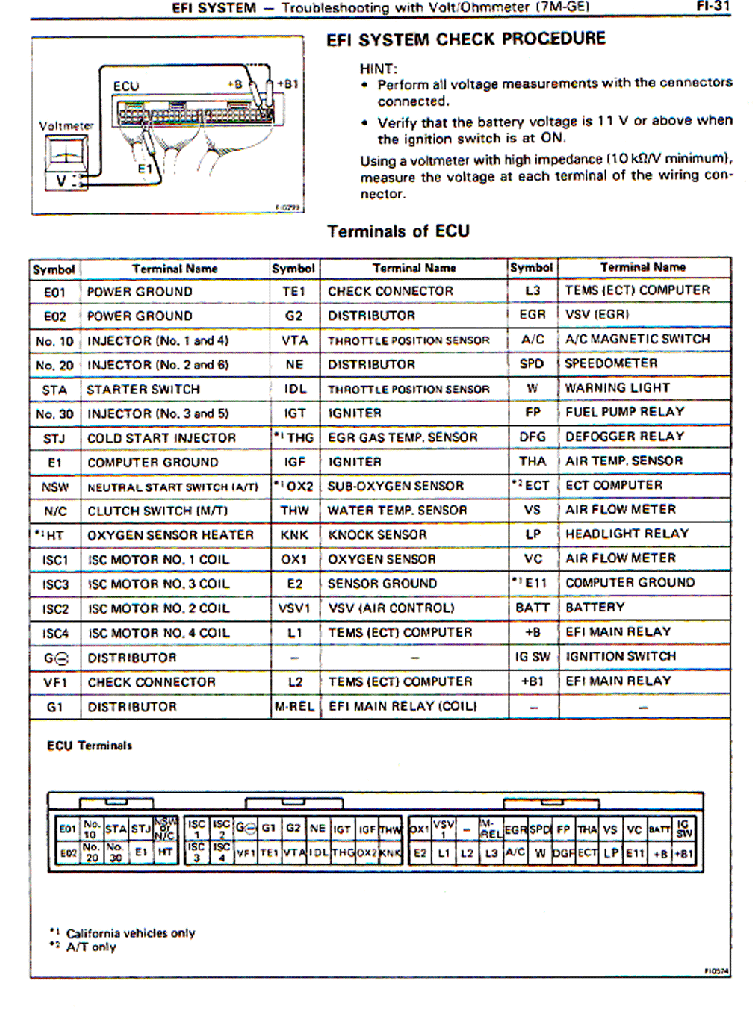

90 n/a
1990 N/A

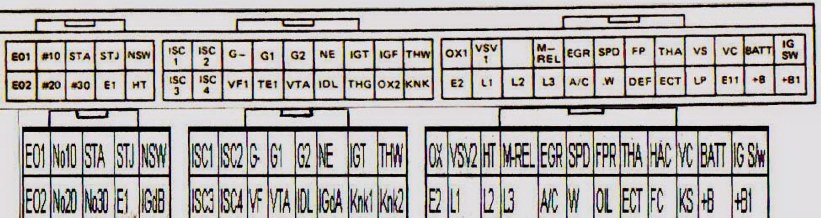

ECU Pins
